DIMENSIONS
| Diameter | 3/8 |
|---|---|
| Pitch | 19 |
| Dimension | G (BSP) 3/8 x 19 |
| Length | 1,5 D |
| T (Length when installed) | 14,29 mm |
| Thread length calculation | 1.5 D means 1.5 times the calculation diameter: 1.5 times 9.525 mm=14.29 mm The nominal diameter for G (BSP) 3/8 is approx. 16.66 mm, but according to the standard the length is calculated with the diameter of 9.525 mm for calculation purposes |
CHARACTERISTICS
| Product group | Wire thread inserts - Repair kits |
|---|---|

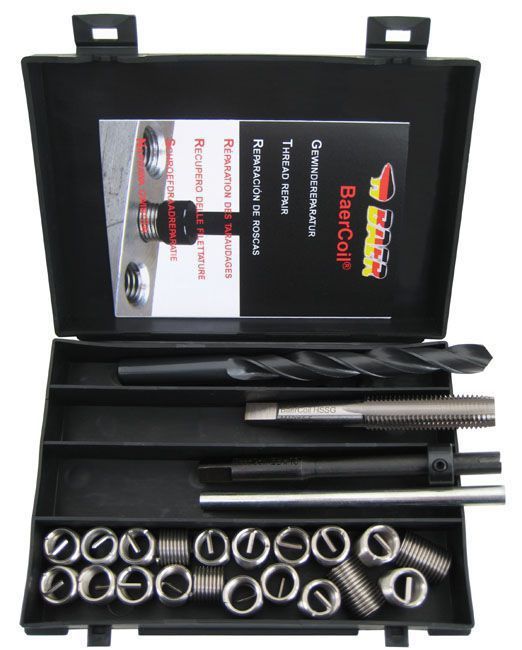

| Product type | BaerCoil thread repair kits |
| Thread standard | G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Direction | Right |
| Type | free running |
| Tensile strength at room temperature | >1400 N/mm² |
| Material | Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance | 315°C long-term 425°C short-term |
