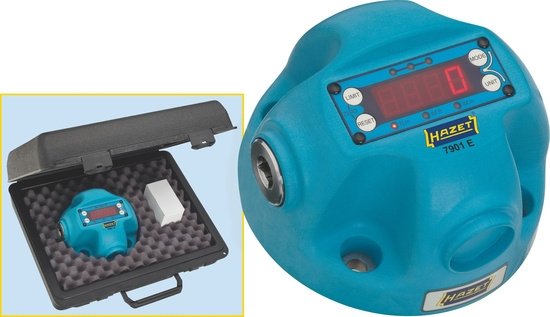

• Measuring range 10 –350 Nm (maximum torque)
• Fixed square socket, 12.5 = ¹/₂″
• H 97.5 x ⌀ 160 mm
• Accuracy ± 1 %
• 3 operation modes:
  • Tracking mode (track)
  • Click point detection (first peak)
  • DIAL mode for peak value indication (final peak)
• Delivery includes mains adapter and RS-232C connection cable to computer and/or printer
• Quick wall or table fixation with 4 screws
• Simple handling
• Calibration in Nm, torque units lbf.ft and lbf.in may also be selected
• Possibility to enter target torque setting and percentage tolerance setting
• Including test certificate
• Weight device: 3.28 kg
  Weight including case and mains adapter: 4.66 kg
• Drive: Square, hollow 12.5 mm (1/2 inch)
• Net weight: 4 kg

TECHNICAL DATA

• Drive : j 12,5 = 1/2″
• Net weight : 4 kg
• Nm min-max : 10 – 350
• Tightening torque max. : 350
• Torque min Nm : 10
