8497793.9663.02400

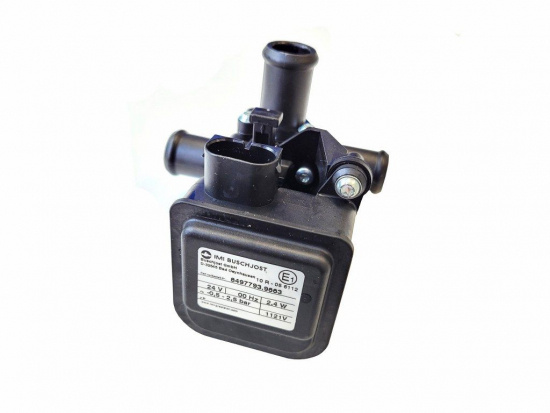

3-Way Motorised Valve
• For coolant mixture of
water and antifreeze
• Electric motor drive
• Rotary slide valve
• Hose nozzle P = 22 mm
A = 22 mm B = 22 mm
DIN 71 550
• Operating pressure
-0,5 to 2,5 bar
• Static pressure max.
4 bar
Features
> Low power consumption
> Remains in last position if power is lost
> Operating time through 90° angle appr. 1.8
to 3.1 seconds. (Depending on supply voltage)
> Manual override
